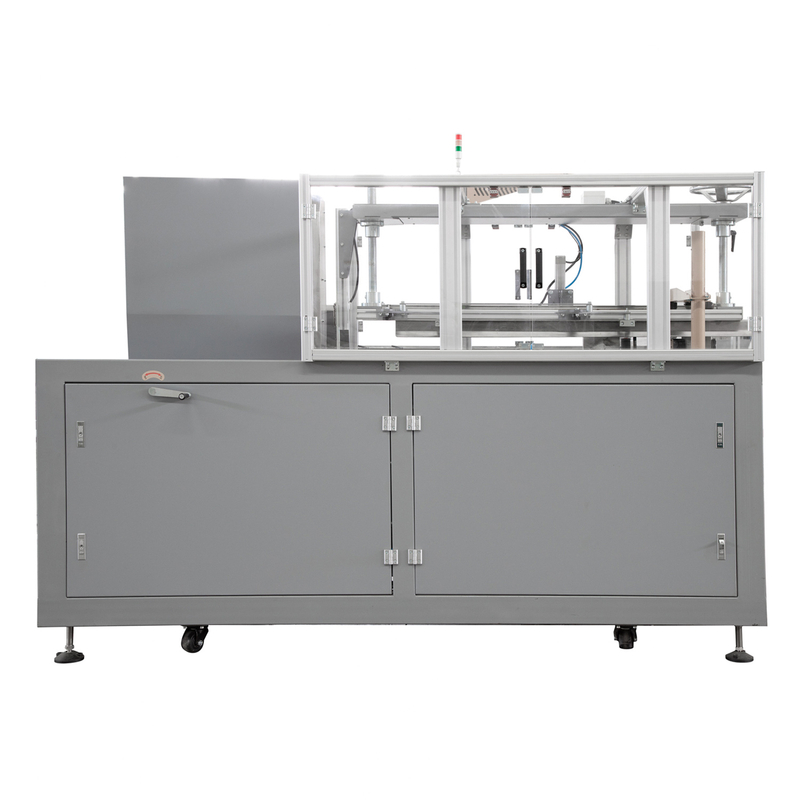

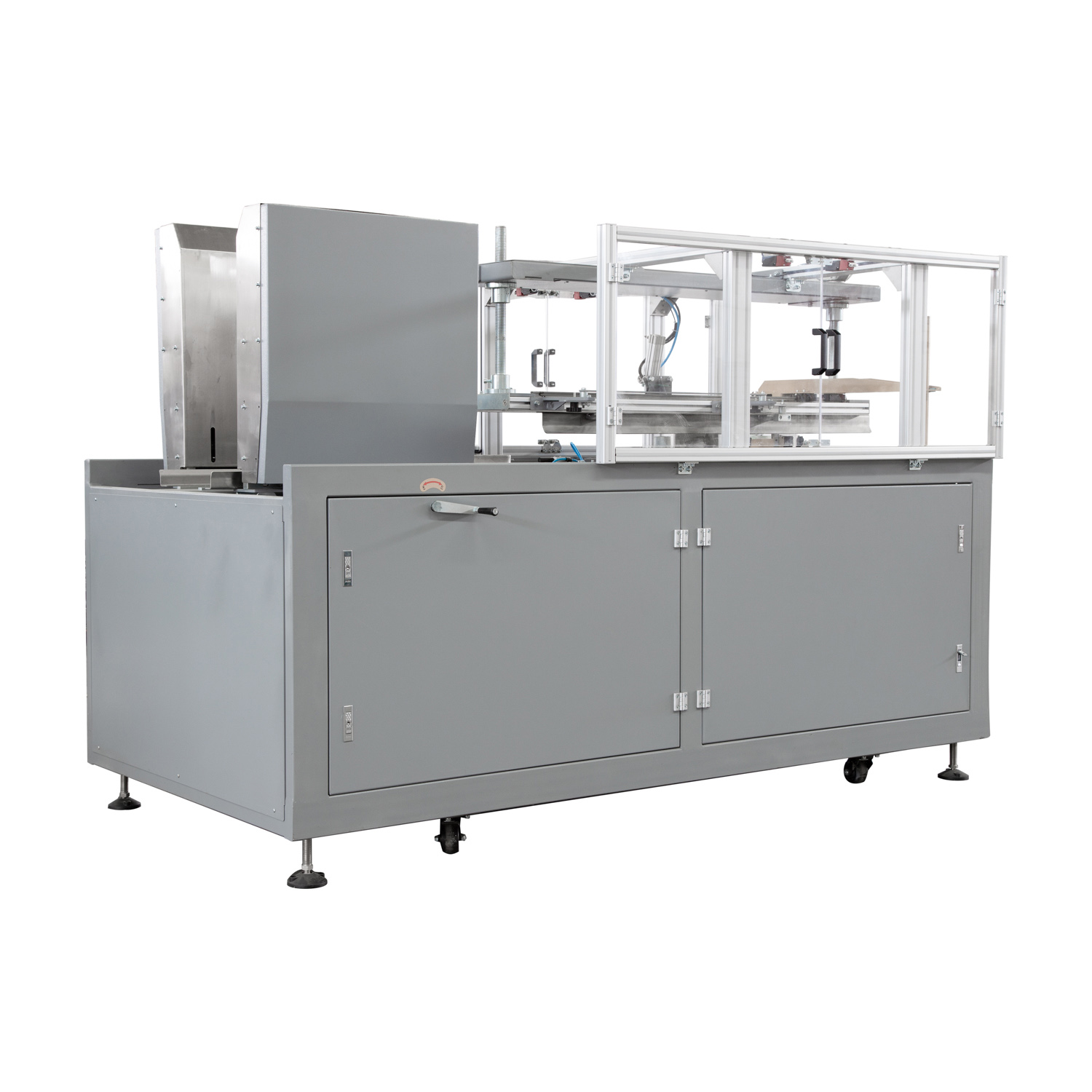

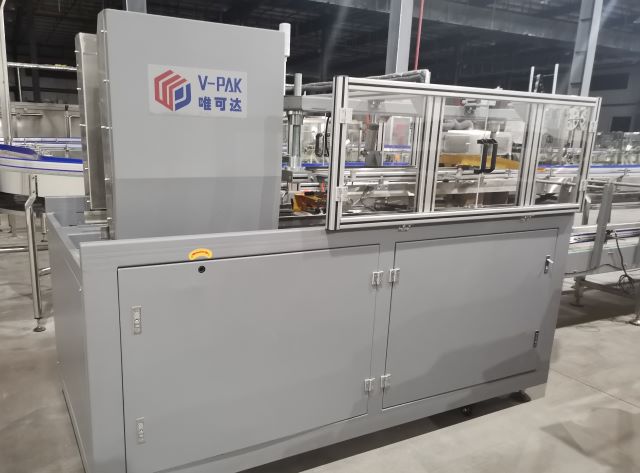

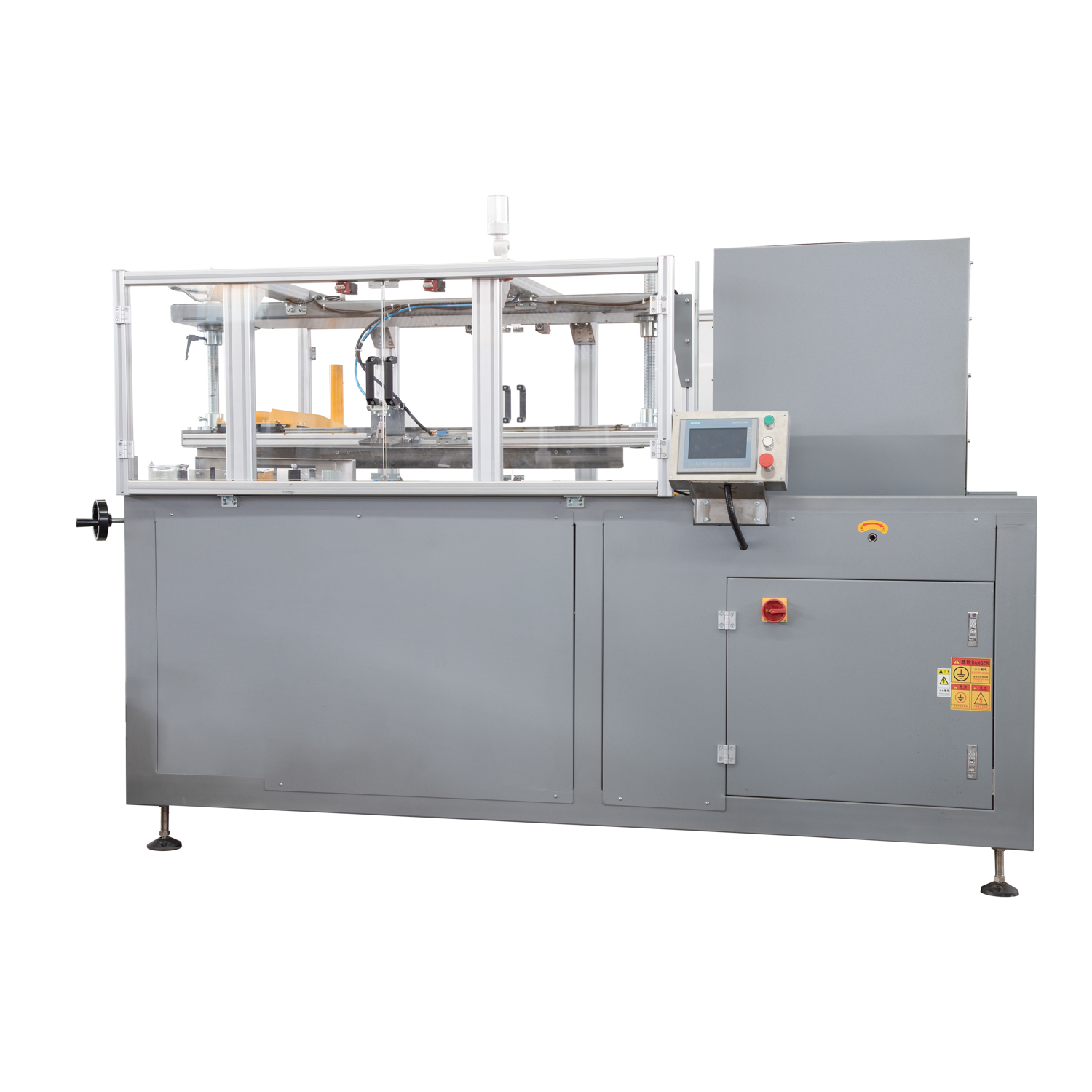

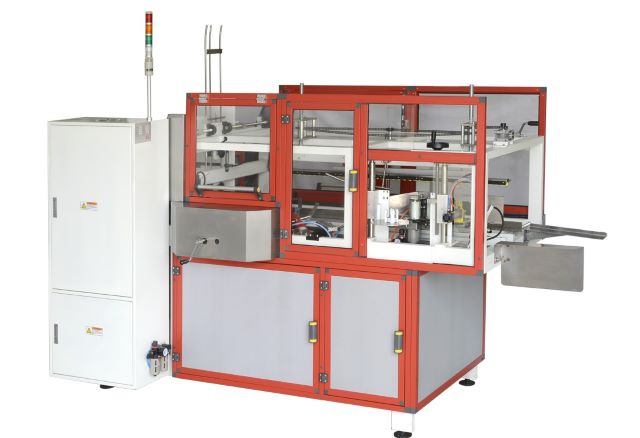

Custom Horizontal Case Erector Box Unfolding and Bottom Sealing Machine

This horizontal case erector features horizontal blank storage with a high-capacity magazine for long periods of continuous operation, using high-efficiency vacuum suction to automatically pick, unfold and seal the bottom with tape The system is equipped with precision sensors and PLC control to ensure accurate movement and perfectly square cases during horizontal transmission, making it ideal for production lines with limited height or large carton requirements With its intuitive interface and quick adjustments for various specifications, it is widely used in food, chemical appliance and logistics industries as an essential automated solution to boost efficiency and reduce labor intensity.

Model: WKD-WKX25 WKD-WKX40
Power Supply: 220V、1§、50HZ.800KW
Air Consumption: 6kg/cm²,450NL/min
Machine Appearance Size: L2580-3120*W1150-1250*H1800-1740mm
Machine Weight: 1200KG
Carton Size: L+W≤900mm; W≤400mm; H++1/2W≤530mm; 1/2W≤200mm
Carton Storage Quantity: 70~100PCS
Tape Width: OPP48-72mm*900Yard Alternative
Working Speed: ≤25cartons/min; ≤40cartons/min
Worktable Height: 900~950mm
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Case Erector Case Packer Machine automatic packer High-Efficiency Packaging Machine
Product Description

  • The carton storage is horizontal, and the empty carton can be replenished at any time, without stopping, without delaying production.

  • Suitable for various sizes of carton unpacking bottom cover, if you need to change carton specifications, manual adjustment can be done, simple and convenient operation.

  • Open the door automatically stop, cut off gas, greatly improve the safety of use. The whole machine adopts CAM continuous system, and the mechanical operation is accurate.

  • The forming and sealing box adopts no stage variable speed control, which can adjust the speed arbitrarily and save time.

  • lt is suitable for automatic unpacking and sealing of cartons of various sizes. lf carton specifications need to be changed, manual adjustment can be made and automatic warning reminder is provided to replenish cartons.

  • This unpacking machine automatic unpacking, automatic folding cover, automatic sealing using PLC+ man-machine interface control, simple operation, easy maintenance.
