Side Infeed Wrapping Machine Automatic Side Feed Carton Wrapper for Packaging Line

Side Infeed Wrapping Machine Automatic Side Feed Carton Wrapper for Packaging Line

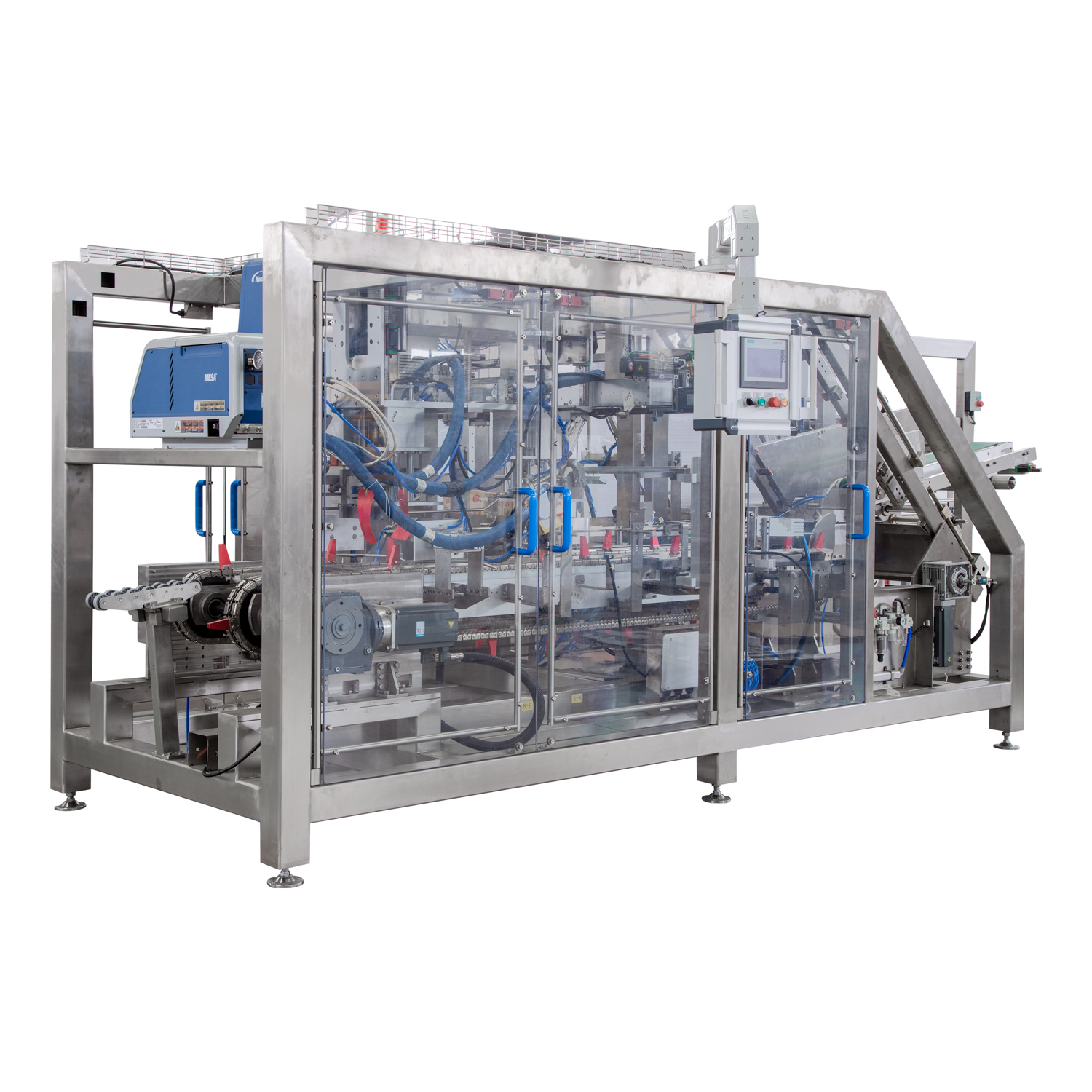

The machine is an automatic wraparound case packer specially designed for Tetra Pak, gable-top cartons and other aseptic paper packaging products.mAdopting a side-entry feeding structure, it can automatically complete processes such as product arrangement, side reciprocating feeding and automatic wrapping forming, suitable for single-row continuous feeding and wrapping operations of Tetra Pak products. With stable operation and tight wrapping, it can effectively protect the product appearance, prevent wear and deformation during transportation, support quick changeover and be compatible with Tetra Pak products of different specifications. It is widely used in the post - wrapping production line of aseptic paper packaging in the food and beverage industry and can seamlessly connect with the filling line and tube labeling machine to improve the overall packaging efficiency.

Model: WKD-CGB10F
Suitable Products: Tetra Pak, Gable-top cartons
Suitable Size 125ml/200ml/250ml/500ml/1000ml
Carton Size L200-430mm*W140-270mm*H90-230mm

Sealing Type: Hot melt glue
Feeding Height: 800mm
Outlet Height: 650mm
Machine Size: L4650*W2050*H2000mm
Packing Speed: 5-10cases/min
Power Supply: 3Phase,380V,50HZ,10KW
Air Consumption: 800-1000L/min
Machine Weight: 2000kg

Quantity:
Availability:





Inquire Add to Basket

Side-loading Wraparound Case Packer For Tetra Case Packer Machine automatic packer Case Erector

Product Description

Heavy-Duty1000ml Format Optimization: Specifically designed for 1-liter cartons, the horizontal side-entry pushing system provides smooth and powerful handling for heavy loads, preventing carton tipping and preserving surface integrity.

High-Strength Hot Melt Sealing: Equipped with world-class Robatech or Nordson adhesive systems for precision gluing and tight forming, providing superior box structural integrity to handle the significant weight of ll liquid products during transport.

Global Tier-1 Configuration: Driven by Siemens or inovance PLCs and supported by Schneider electrics, SiCK sensors, and SMc pneumatics, ensuring unparalleled 24/7 reliability in demanding dairy production environments.

Full Servo-Driven Synchronization: Features high-end inovance servo motors and HIWIN linear guide rails for millisecond-level coordination of grouping, cardboard feeding and wrapping, resulting in low noise and high efficiency.

Reinforced 2-Ton Structural Frame: The 2000kg reinforced steel construction effectively absorbs operational vibrations caused by moving heavy il packs, guaranteeing long term mechanical accuracy and machine durability.

Intelligent HMl & Recipe Management: A user-friendly touch-screen interface allows operators to store multiple recipe parameters, enabling one-touch adjustments and significantly reducing downtime for different packaging formats.
