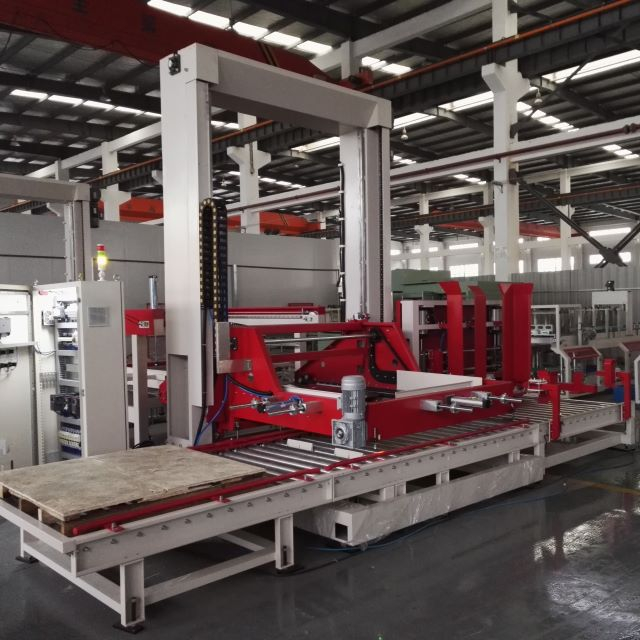

Low Noise Low Level Palletizer for Factory and Logistics for Beverages

The low position palletizer adopts a low-level carton feeding and integrated lifting structure, featuring stable operation and high safety. Products are stacked layer by layer according to the preset pallet pattern and the full pallet is automatically discharged upon completion. It is suitable for automatic palletizing of various regular materials such as cartons, bags and drums. With easy operation, compact layout and neat stacking, it is widely used in end-of-line packaging lines in food, grain, chemical and building materials industries, effectively replacing manual labor and improving production efficiency.

Model: WKD-LMD30
Main materials: Carbon steel baking paint
Aircraftnoseload: 200-360kg
Feeding Speed: 20-30m/min
Applicable Packaging Size Range: L200-450*W200-450
Applicable Pallet Size Range: L800-1200*W1000-1200*H120-180mm
Pallet Height: 1800mm
Automatic Setting Function: Intelligent self-learning(the product can automatically set parameters through self-learning
Conveyor Height: Above ground 500mm
Conveying Direction: Facing the equipment,deliverto the left,right,or forward
Alarm Methods: Audible and visual alarm
Pallet Conveyor: Roller or chain type
Equipment Power Supply: AC380V,3phase,22kW
Palletizing Environment: The equipmentisplacedona stable,level surface
Equipment Operatingenvironment: Indoortemperature, dry environment

Quantity:
Availability:





Inquire Add to Basket

low level palletizer low profile palletizer automatic palletizer palletizing machine

Product Description

The palletizer automatically stacks packaged products—such as cartons, bags, drums and film-wrapped items—onto pallets in a specific arrangement. It can stack multiple layers before discharging the pallet for forklift transport to warehouse storage. This equipment employs PLC+ touchscreen control for intelligent operation management, offering simplicity and ease of mastery. It significantly reduces labor requirements and lowers

physicalworkload.

Touch screen operation enables human-machine interaction, displaying production speed, fault causes and locations with a high degree of automation.The number of stacking layers, pallet supply, and carton discharge can all be programmed via PLC.
Pneumatic components and cylinders from Taiwan Yadec are used,ensuring reliable quality andperformance.
Safety doors and shields are equipped with electrical induction devices; when the shield door is opened, the machine stops operating to protect personnel safety.
Adjustment of stacking modes is convenient and simple, operable via the touch screen.
Stable stacking and high efficiency significantly reduce manpower consumption.
The carton supply system is controlled by a brake motor to ensure cartons are delivered to the preset position.
The pallet library has a large capacity, holding 8-10 empty pallets for automatic pallet supply.
Multiple stacking methods can be achieved without replacing stacking components.
