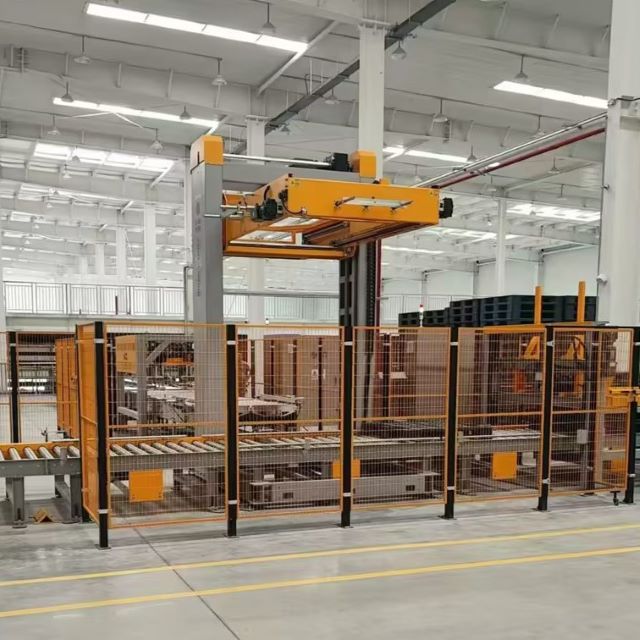

Low Level Automatic Palletizer Industrial Box & Bag Stacking Machine

Low Level Automatic Palletizer Industrial Box & Bag Stacking Machine

The low-position palletizer features a low-level box feeding and an overall lifting stacking structure, ensuring smooth, safe, and reliable operation. It stacks boxes layer by layer onto pallets according to preset stack patterns and automatically ejects the completed pallets. Suitable for automatic palletizing of various regular-shaped materials such as cartons, bags, and drums, this equipment is easy to operate and maintain, occupies minimal space, and produces neat, stable stacks. It is widely applicable in the packaging lines of industries including food, grain and oil, chemicals, and building materials, effectively replacing manual palletizing and significantly improving production efficiency.

Model: WKD-LMD30
Main Materials: Carbon steel baking paint
Aircraft Nose Load: 200-360kg
Feeding Speed: 20-30m/min
Applicable Packaging Size Range: L200-450*W200-450
Applicable Pallet Size Range: L800-1200*W1000-1200*H120-180mm
Pallet Height: 1800mm

Automatic Setting Function: Intelligent self-learning (the product can automatically set parameters through self-learning)
Conveyor Height Above Ground: 500mm
Conveying Direction: Facing the equipment,deliverto the left,right,or forward
Alarm Methods: Audible and visual alarm
Pallet Conveyor: Roller or chain type
Equipment Power Supply: AC380V, 3phase, 22kW
Palletizing Environment: The equipmentisplacedona stable,level surface
Equipment Operating Environment: Indoortemperature, dry environment

Quantity:
Availability:





Inquire Add to Basket

Low-position Palletizer tray packer machine case packer

Product Description

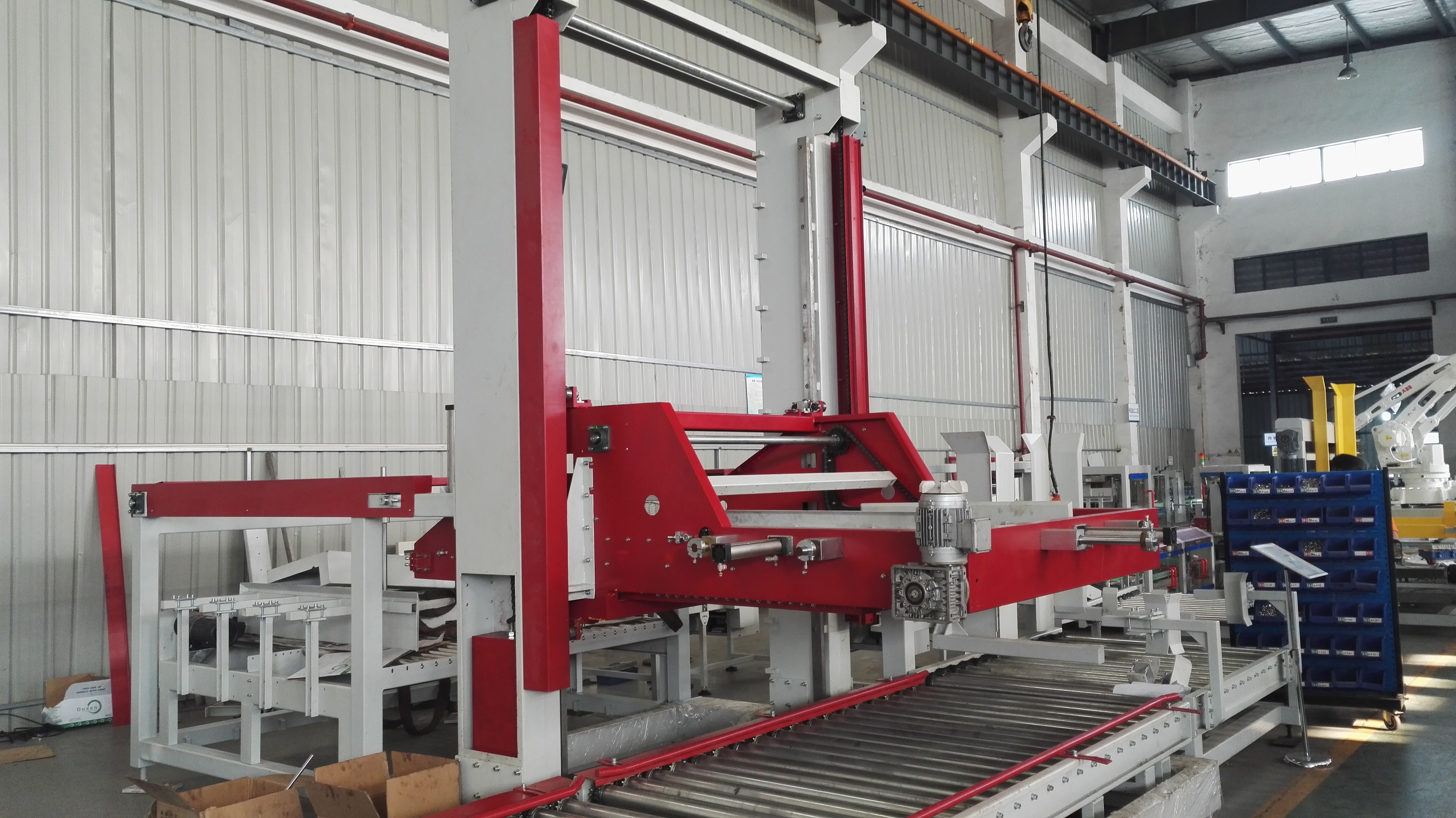

IMG_20170817_163202

Touch screen operation enables human-machine interaction, displaying production speed, fault causes and locations with a high degree of automation. The number of stacking layers, pallet supply, and carton discharge can all be programmed via PLC.
Pneumatic components and cylinders from Taiwan Yadec are used, ensuring reliable quality and performance.
Safety doors and shields are equipped with electrical induction devices; when the shield door is opened, the machine stops operating to protect personnel safety.
Adjustment of stacking modes is convenient and simple, operable via the touch screen.
Stable stacking and high efficiency significantly reduce manpower consumption.
The carton supply system is controlled by a brake motor to ensure cartons are delivered to the preset position.
The pallet library has a large capacity, holding 8-10 empty pallets for automatic pallet supply.
Multiple stacking methods can be achieved without replacing stacking components.
